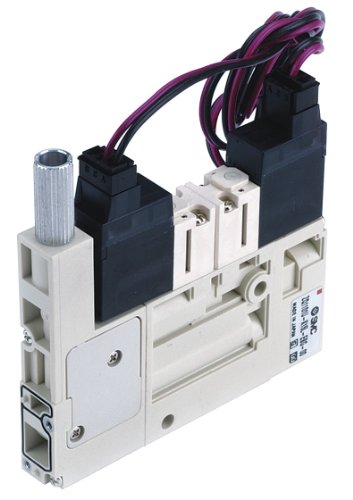

SMC ZQ1071U-K15L-F Vacuum Ejector - M5 Pressure Port, 10.0Lpm Flow Rate for Industrial Automation & Packaging Equipment

Vacuum Ejector, Single Unit, Pressure Port Size M5, Vacuum Port Size M5, Exhaust Type Muffler, Supply Pressure Range 43 to 72 PSI, Vacuum Pressure Range 0 to -80 KPA, Vacuum Pressure @ 40 PSI -60 KPA, Vacuum Pressure @ 75 PSI -80 KPA, Vacuum Flow Rate 10Lpm, Orifice Dia. 0.7mm, Valve Type 2 NC Supply and Release, Valve Supply Voltage 24VDC, Length 87.2mm, Width 10mm, Height 68.4mm, Weight 95g, Temp. Range 5 to 60 Degrees C, Includes Muffler, Needle Flow Control Valve, Supply Valve, Release Valve Valve Supply Voltage : 24VDC Exhaust Type : Muffler Weight : 95g Supply Pressure Range : 43 to 72 PSI Includes : Muffler, Needle Flow Control Valve, Supply Valve, Release Valve Width : 10mm Height : 68.4mm Temp. Range : 5 Degrees to 60 Degrees C Vacuum Pressure Range : 0 to -80 KPA Vacuum Pressure @ 40 PSI : -60 KPA Vacuum Pressure @ 75 PSI : -80 KPA Orifice Dia. : 0.7mm Vacuum Port Size : M5 Valve Type : 2 NC Supply and Release Pressure Port Size : M5 Length : 87.2mm Vacuum Flow Rate : 10.0Lpm Item : Vacuum Ejector, Single Unit Ejector Type : Single Stage Venturi Country of Origin (subject to change) : Japan
